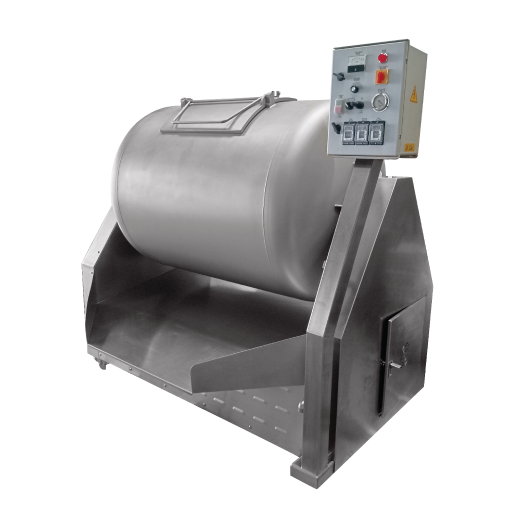

Vacuum Tumbler 80 – 800 Liters

MODEL:
80, 150, 300, 500 and 800 Liters

PURPOSE:
This machine can save you time on marination. It removes air from the barrel, and pull moisture and marinade to the food’s core. The tumbling motion flips marinade continuosly onto food, massaging it into the meat to produce moist, flavourful product.


Brochure

Specification

80 Liters

Power 220V, 1 PH, 60 HZ
Pump 10m 3/h (Busch: Germany)
Drive Motor Power 1/2 HP
Drum Speed 0-20 rpm
Effective Tumbling Capacity 30 kg
Dimension L 80 x W 80 x H 152 cm

150 Liters

Power 220V, 1 PH, 60 HZ
Pump 21m 3/h (Busch: Germany)
Drive Motor Power 1/2 HP
Drum Speed 0-20 rpm
Drum Dimension Ø580 x 680
Effective Tumbling Capacity 60 kg
Dimension L 1050 x W 900 x H 1570 mm

300 Liters

Power 220V, 1 PH, 60 HZ
Pump 21m 3/h (Busch: Germany)
Drive Motor Power 1 HP
Drum Speed 0-15 rpm
Drum Dimension Ø700 x 860
Effective Tumbling Capacity 120 kg
Dimension L 1250 x W 1050 x H 1650 mm

500 Liters

Power 220V, 3 PH, 60 HZ
Pump 40m 3/h (Busch: Germany)
Drive Motor Power 1 HP
Drum Speed 0-20 rpm
Drum Dimension Ø900 x 1050
Effective Tumbling Capacity 200 kg
Dimension L 1400 x W 1200 x H 1750 mm

800 Liters

Power 220V, 3 PH, 60 HZ
Pump 40m 3/h (Busch: Germany)
Drive Motor Power 2 HP
Drum Speed 0-15 rpm
Drum Dimension Ø900 x 1050
Effective Tumbling Capacity 300 kg
Dimension L 165 x W 130 x H 175 cm
