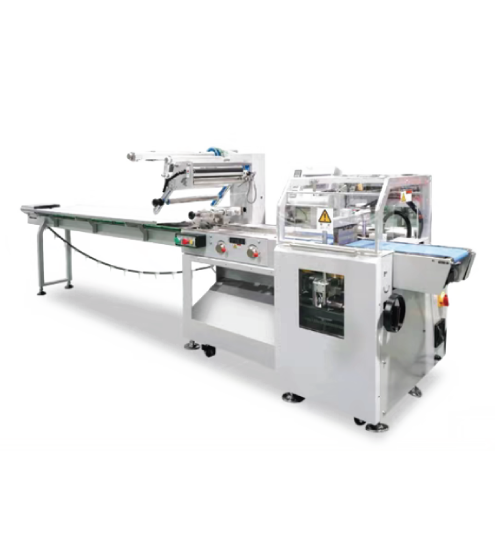

HORIZONTAL FLOW WRAP PACKING MACHINE SZ-400W

HORIZONTAL FLOW WRAP PACKING MACHINE SZ-400W

MODEL:
SZ-400W

PURPOSE:
Suitable for baked goods (mooncakes, bread, biscuits, etc.), medical devices, candy, pharmaceuticals, daily necessities, Packaging of various solid, regular objects such as hardware parts, cardboard boxes, or pallets.


Brochure

Categories ,

Specification

Packaging speed 30-120 (packs/minute)
Packaging film width 90-400 mm
Bag L-80-350 mm | W-235-160 mm | H-5-70 mm
Product range 35-160 mm
Total power 5.2 kW (Double temperature control)
Main power supply 3.1 kW
Heating power 2.1 kW (Double temperature control)
Machine weight 550 kg

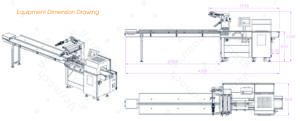

Machine Size 1930 x 880 x 1380 (machine head)
4200 x 800 x 1380 (feeding conveyor)
Power type 220V
Packaging film materials OPP/CPP, PT/PE, KOP/CPP, VMBOPP, VMPET, etc.

Features:

  • This machine is equipped with three servo system. With highest packing speed.
  • The machine structure well designed, easy for maintain, low noisy, no need do to much adjusting, open machine directly using.

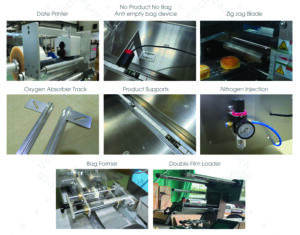

  • The machine can choose to equipment with automatic feeding conveyor, good expansibility.
  • All-purpose bag former, can adjust freely. Easy operation and fast.
  • The machine design conforms to National GMP standard.
