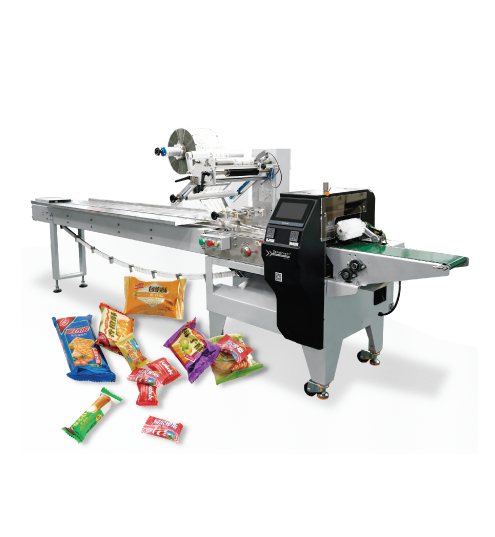

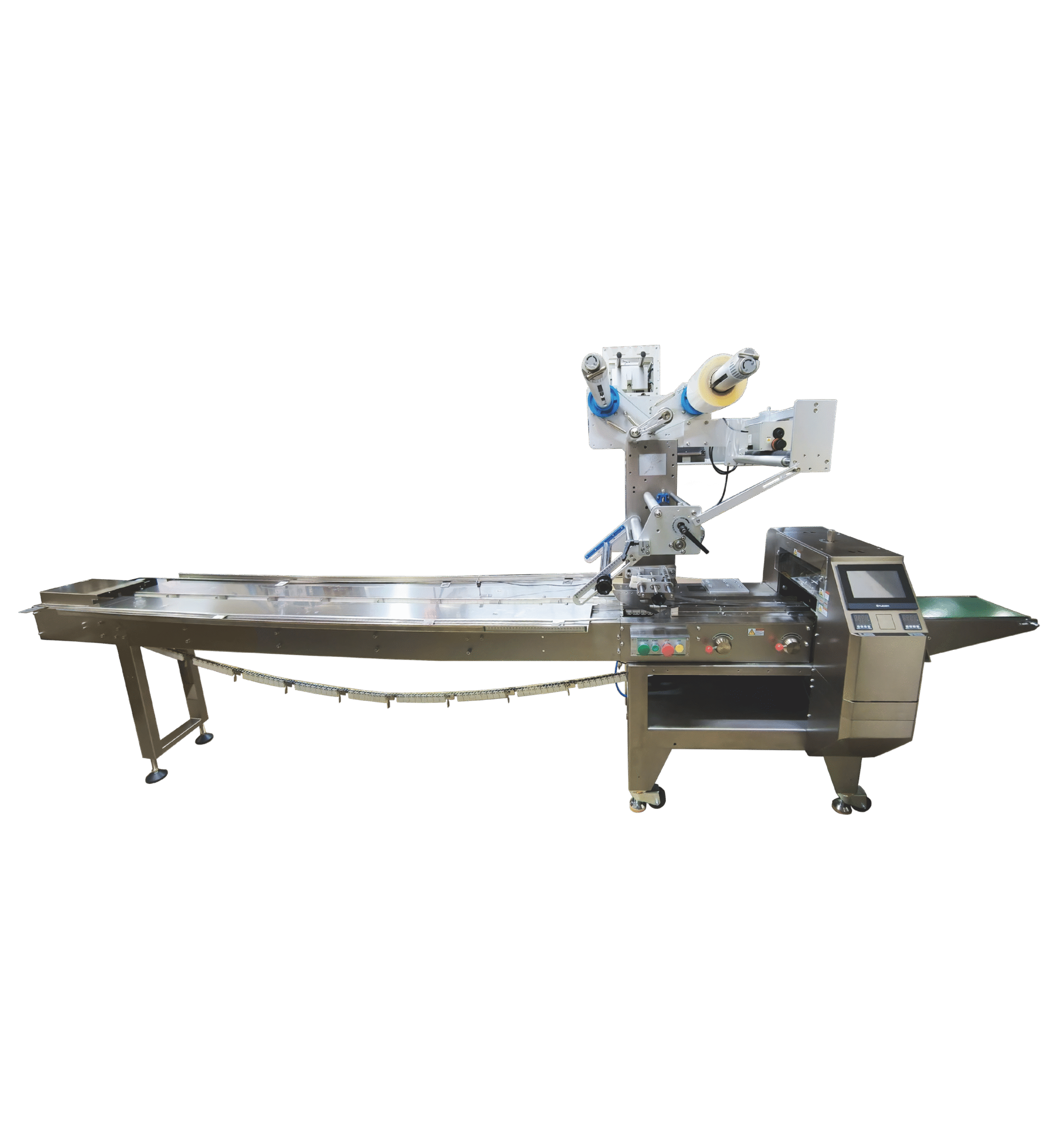

HORIZONTAL FLOW WRAP PACKING MACHINE SZ-180

MODEL:
SZ-180

PURPOSE:
It is suitable for baking food (moon cake,bread, biscuit,etc), medical equipment, candy, medicine, daiiy necessities, hardware parts, paper box or tray and other solid and regular packing.

Brochure

Specification

Features:

  • The whole machine is controlled by three servos;
  • Seven-inch touch screen display, easy operation and clear working status.
  • Variety of product parameters and formulas can be stored, which can be downloaded and used without repeated settings.
  • Automatic adjustment of bag length without manual setting.
  • Higher precision and accurate sealing and cutting position.
  • Stop position and print position can be set arbitrarily.
  • The packaging range is expanded to adapt to a variety of product specifications.
  • Reduce the labor intensity of the operator, effectively improve production efficiency.



Model 132 (Single Jaws) 132 (Double Jaws) 90 (Triple Jaws)
Package Length 120-500 mm 60-300 mm 45-100 mm
Package Width 35-160 mm 35-160 mm 35-60 mm
Package Height 5-60 mm 5-60 mm 5-30 mm
Packing Speed 30-120 bags/min. 30-250 bags/min. 30-450 bags/min.
Film Size 90-400 mm
Packaging Film Type OPP/CPP, PT/PE, KOP/CPP, VMBOPP, VMCPP, VMPET
Type of Power Supply 220V | 60HZ
General Power 3.8 Kw 5.4 Kw 4.6 Kw
Weight of Machine 400Kg
Dimension 4000 x 930 x 1370 mm
