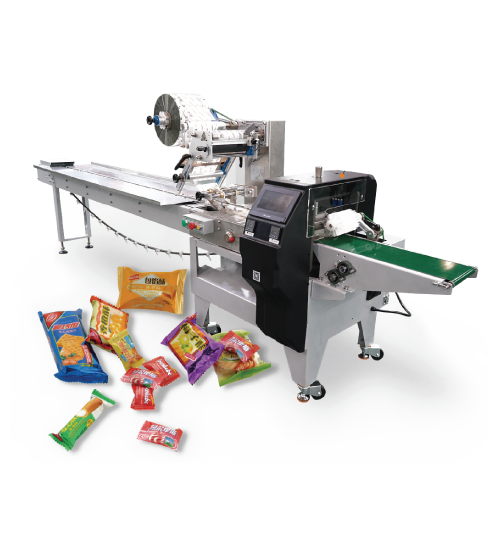

HORIZONTAL FLOW WRAP PACKING MACHINE SZ-100

HORIZONTAL FLOW WRAP PACKING MACHINE SZ-100

MODEL:
SZ-180

PURPOSE:
It is suitable for baking food (moon cake,bread, biscuit,etc), medical equipment, candy, medicine, daiiy necessities, hardware parts, paper box or tray and other solid and regular packing.

Brochure

Categories ,

Specification

Features:

  • The whole machine is controlled by three servos.
  • Seven-inch touch screen display, easy operation and clear working status.
  • Variety of product parameters and formulas can be stored, which can be downloaded and used without repeated settings.
  • Automatic adjustment of bag length without manual setting.
  • Higher precision and accurate sealing and cutting position.
  • Stop position and print position can be set arbitrarily.
  • The packaging range is expanded to adapt to a variety of product specifications.
  • Reduce the labor intensity of the operator, effectively improve production efficiency.



Model SZ-100 (Single Jaw) SZ-100 (Double Jaws) SZ-100 (Triple Jaws)
Package Length 120~300 mm 60~200 mm 45~100 mm
Package Width 35~80 mm 35~80 mm 35~70 mm
Package Height 5~35 mm 5~35 mm 5~30 mm
Packing Speed 30~150 bags/min. 30~250 bags/min. 30~450 bags/min.
Film Size 90~220 mm
Packaging Film Type OPP/CPP, PT/PE, KOP/CPP, VMBOPP, VMCPP, VMPET
Type of Power Supply 220V
General Power 3.1 Kw 3.8 Kw 4.5 Kw
Weight of Machine 360Kg
Dimension 4000 x 930 x 1370 mm
